Main System Parameters:

? Coolant flow rate: 6000 l/min

? Workpiece material: Hardened steel

? Chip output: 18 kg/h

System Features:

? Mature and reliable filterless consumable technology

? Filtration accuracy is less than 10 microns

? Temperature control ± 5K / 10 minutes

Main System Parameters:

? Workpiece materials: Aluminum, cast iron

? Coolant type: Emulsion

? Coolant flow: 10000 l/min

? Chip output: 900 kg/h

System Features:

? Provide coolant filtration cycle and chip disposal for 30 machine tools

Solution:

? Aluminum chip pump

? Multi-stage filtration and recoil filtration

? Dehumidification of centrifuge debris

? Magnetic separation technology

18 processing centers with two processing lines

System parameters:

? Two machining lines with a total of 18 machining centers

? Workpiece material: Cast irons

? Coolant flow: 2 x 4500 l/min

? Chip output: 2 x 200 kg/h

System Features:

? Automatic filtering and conveying of cast iron chips

Solution:

? Pump back to the pumping station

? Turbo filtration

? High voltage station

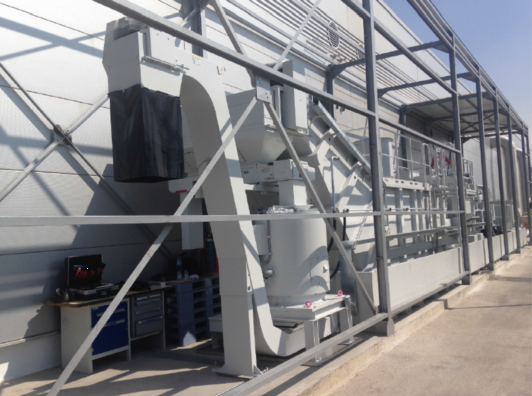

 System Parameters:

? Workpiece material: Inconel

? Coolant flow rate: 10 x 450 l/min

? Chip output: 400 kg/h

System Features:

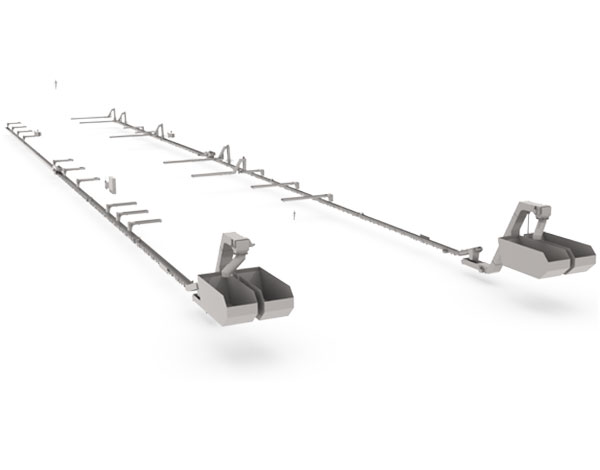

? 160-meter long chip conveyor

? Extremely harsh external environment

Solution:

? ZK type traction chip conveyor

System Parameters:

? Number of machines: 19

? Workpiece material: Carbide

? Coolant flow rate: 2400 l/min

? Filtration accuracy: Less than 3 microns

System Features:

? High filtration quality

? Low temperature difference control

? Installed in the foundation

Solution:

? MicroPur ultra-fine filtration system with AK grinding mud concentration.

System Parameters:

? Number of machines: 2 grinding machines

? Workpiece material: Hardened steel HRC 65

? Coolant flow rate: 1400 l/min

? Chip output: 25 kg/h

System Features:

? High air content in the coolant

Solution:

? VL vacuum filter

? Coolant degassing holes

System Parameters:

? Number of machines: 4 grinders

? Workpiece material: Carbide

? Coolant type: Pure oil

? Coolant flow rate: 400 l/min

? Filtration accuracy: 3-5 microns

System Features:

? Compact, flexible and highly reliable.

Solution:

? MicroPur filtration system with AK20 grinding mud concentration.

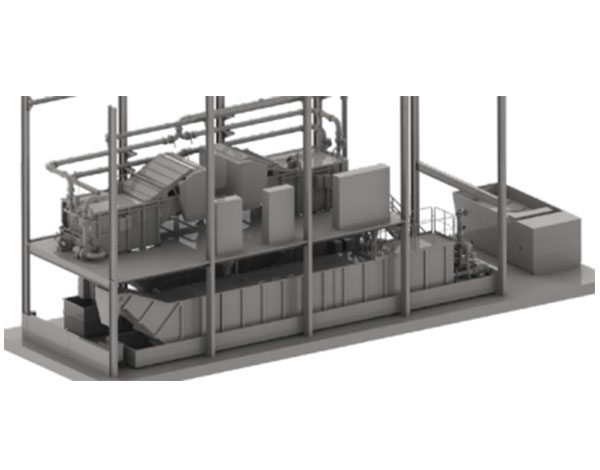

System Parameters:

? Workpiece material: cast iron

? Coolant flow rate: 20,000 l/min

? Chip output: 1100 kg/h

System Features:

? Short installation time

Solution:

? Coolant multi-stage filtration and chip handling system

? Upper and lower floors

System Parameters:

? Number of machines: 2

? Workpiece material: Steel

? Process: Grinding and grinding wheel dressing

? Coolant flow rate: 600 l/min

? Coolant type: Emulsion

? Operating temperature: 22 ° C

? Chip shape: Granular

? Chip removal: 14 kg/h

System Configuration:

? Static pressure filter

? Magnetic separation device (pre-filtration)

? Bypass centrifuge (fine filtration)

System Parameters:

? Number of machines: 18

? Workpiece material: Steel

? Process: Turning, drilling

? Coolant flow rate: 3240 l/min

? Coolant type: Emulsion

? Coolant concentration: 7%

? Operating temperature: 24 ° C

? Filtration accuracy: 50 μm

? Residue concentration: ≤60 mg/l

? Chip shape: Short

? Chip output: 204 kg/h

? Chip content: 0.7 kg/l

? Chips removal: Continuous

System Parameters:

? Chip output: about 600 kg/h

? Suction length: about 280 meters

? Automatic separation of cast iron and steel chips

System Configuration:

? 11 sets of ZVD chip breakers

? 2 sets of 600K-4 chip removal devices

? 4 sets of chip filter towers

System Parameters:

? Number of machines: 19

? Workpiece material: High hardness steel

? Process: Drilling, milling

? Coolant type: Emulsion

? Chip output: 400 l/min

? Chip fluid flow: 450 liters per minute

? High pressure supply: 84 l/100 bar and 40 l/120 bar

? Low pressure supply: 300 l/ 3.5 bar

System Parameters:

? Number of machines: 10

? Workpiece material: Stainless steel

? Process: Turning, drilling

? Coolant type: Pure oil

? Chip shape: 50% spiral (?15 mm/max. 85 mm), 50% short

? Chip output: 14000kg / 24 hours

? Chip removal: Continuous

System Parameters:

? Workpiece material: Steel

? Process: Turning, boring, drilling

? Coolant type: Pure oil

? Working viscosity (40 ° C): 9.7 mm2 /s

? Chip feeding method: Forklift and chip bin

? Chip feeding frequency: ≤2 batches / hour

? Amount of chips per batch: 400 liters

? Chip removal: 0.5 kg/h
